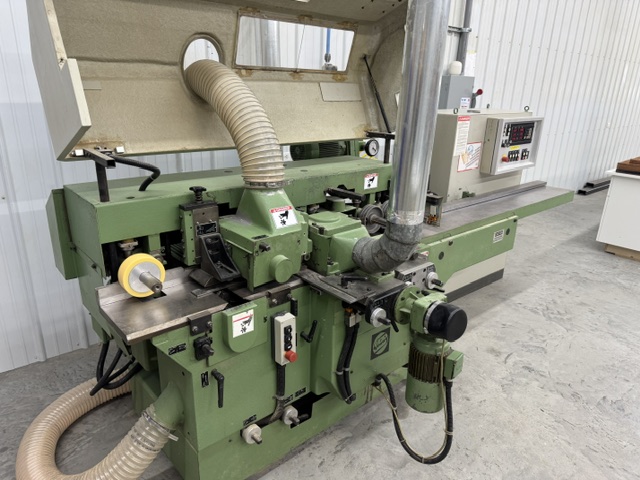

Weinig Unimat 22 AL 5 Head Moulder

Price: FOB shipping point...$11,900.00

• 1 ea. Used Weinig Unimat 22 AL 5 Head Moulder

• Serial # 222-899

• AS per specs, listed...$11,900.00 (Loaded on a truck)

• Four-sided planer/moulder with vibration absorbing and non-deforming heavy cast-iton frame

• Operating voltage: 220/440 volts, 60 cycles, must be dual

• Spindle Arrangement No. 11: 1st spindle below the table (surfacing spindle), 2nd spindle right (edge jointing spindle), 3rd spindle left, 4th spindle above, 5th spindle below

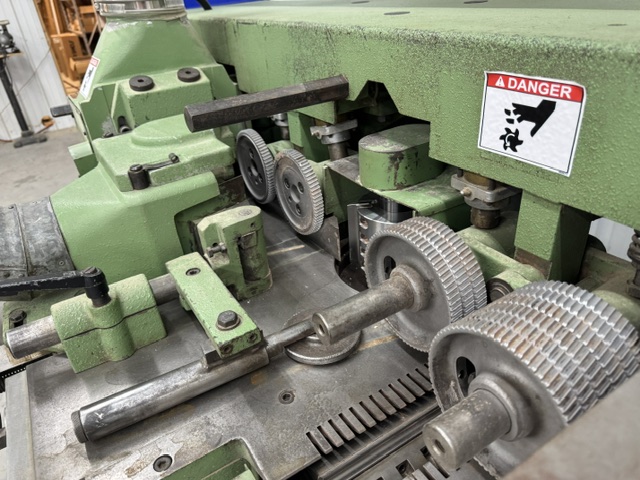

• Pneumatically pressurized feed rollers

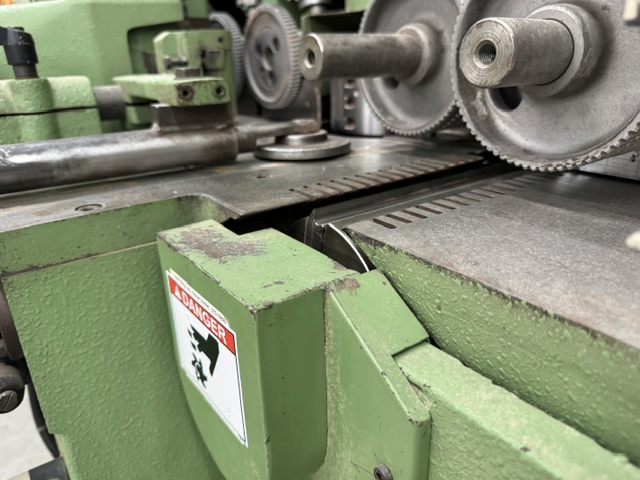

• Short infeed table with 2 powered rollers above the table and 1 idle roller in the table

• High-precision ball bearing of spindle no. 2,3

• High-precision execution of spindle no. 5

• Increase of motor power from 4KW to 7,5 KW (5,5 HP to 10HP) for spindle no. 1,2,3

• Increase of motor power from 4KW to 11 KW (5,5 HP to 15HP) for spindle no. 5

• Increase of motor power from 4KW to 15 KW (5,5 HP to 20HP) for spindle no. 4

• Increase of motor power from 4KW to 7,5 KW (5,5 HP to 10HP) for chainless feed (feed speed 8 to 40 m/min.)

• Hardened table inserts

• Profile jointer for spindle no. 2,3,4,5

• Spindle diameter 1.13/16" for spindle no. 1,2,3,4,5

• Pressure roller (2 rollers) opposite 1st right spindle, connected to left spindle, telescopic

• Safety sover for feed rollers up to first top head folding up

• Waxilit pump to clean the machine table, manual

• Cutting circle 250mm for spindle no. 2,3,4

• 3 idle rollers in the machine table
